Fuse Box With Positive & Negative Busbars - 6 Way

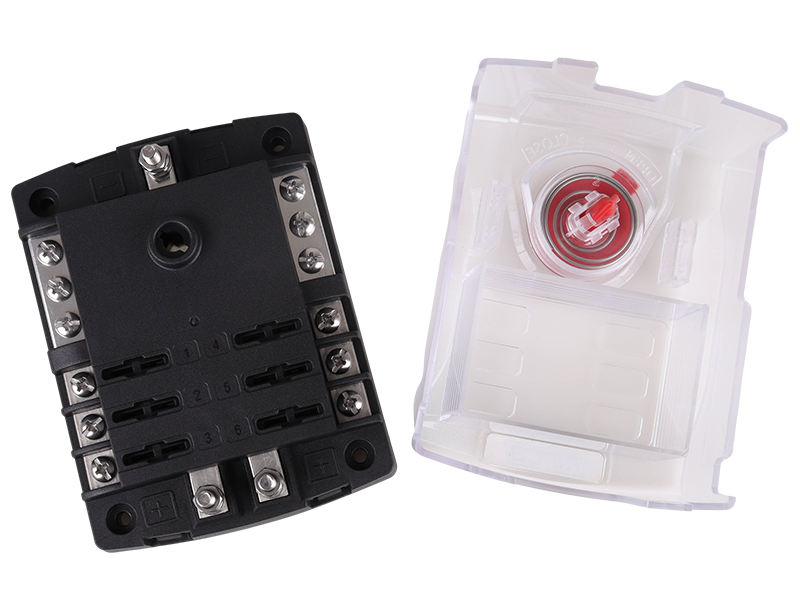

6 way version of our popular fuse box comprising 2 independent positive busbars (e.g. for 1 permanent live busbar and 1 ignition-switched busbar) and 1 negative busbar:

• Positive busbar A - 1 x common busbar and  3 x individual circuits protected by standard blade fuses
• Positive busbar B - 1 x common busbar and  3 x individual circuits protected by standard blade fuses
• Negative busbar -  1 x common busbar and 6 x individual connection blocks

The two positive inputs can be easily and conveniently 'communed' together using our Jumper Bar & Washer Set (product code P02090).

The multi-connection negative circuit is particularly useful for marine applications where the ground returns from each circuit need to be communed for connection back to the battery -ve. Also useful in non-marine applications to keep all terminations neat and tidy and allow easy fault finding if you suspect a bad earth.

All common busbars have an M5 stud and nut terminal for connection. All other connections are via M4 screw terminals.

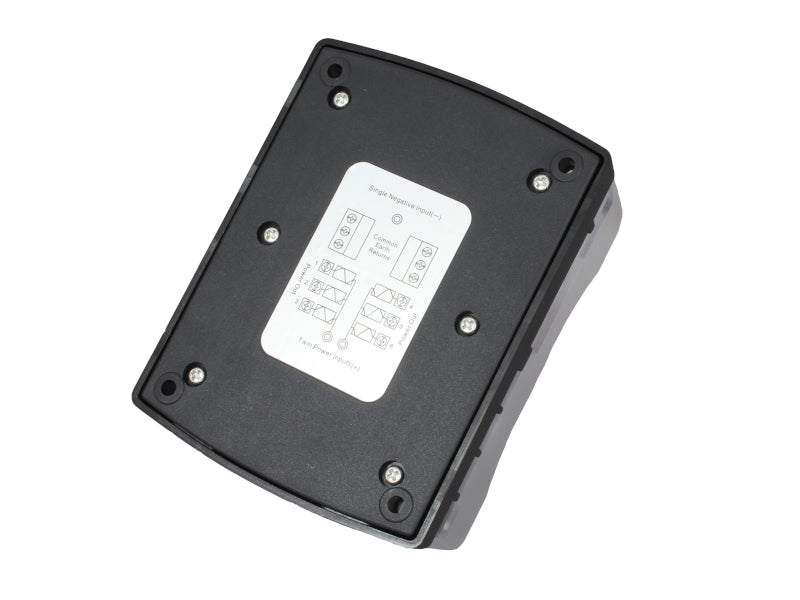

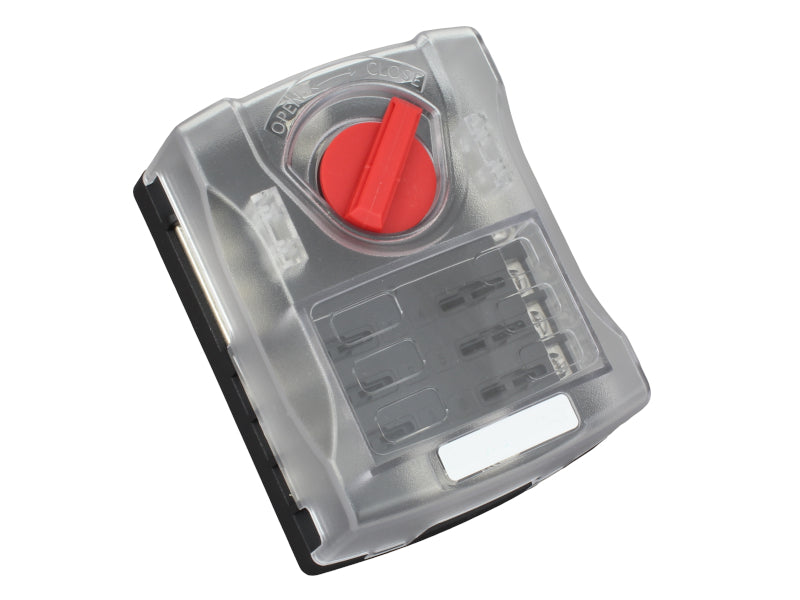

The cover is secured via a sprung rotary locking mechanism and incorporates two slots for storing spare fuses and molded-in recesses to affix labels for circuit ID. The base contains 4 fixing holes for mounting the fuse box to a flat surface.

Accepts our range of standard blade fuses (including LED glow versions).

Sold individually with decal sheet (fuses not included)

• Max current rating: 30A per circuit  / 100A Total
• Max Voltage rating: 32V DC
• Common bus stud size: M5 (use 5.3mm ring terminals for connection)
• Individual terminal screw size: M4 (use 4.3mm ring or fork terminals for connection)
• Base colour: Black
• Cover colour: Clear
• Base and cover material: Polycarbonate
• Mounting hole dia: 4.5mm
• Mounting hole pitch: 74.0 (X), 98.6 (Y) mm
• Overall dims:  125 (L) x 94 (W) x 57 (H) mm
