Jumper Bar & Washer Set For Fusebox Input Terminals

Tinned copper jumper bar and washers to join the two positive input terminals of fuse boxes with product codes P01270 and P00604.

These fuse boxes have electrically separated input terminals for the main positive feeds, however, for the majority of installations it is more convenient to have all circuits 'common' and the fuse box fed with a single positive cable.  This is typically achieved by connecting the input terminals together with a loop of cable, but this requires more terminations (and more opportunity for bad connections that could cause voltage drop), takes up space and looks untidy because the loop of cable protrudes from the cover.

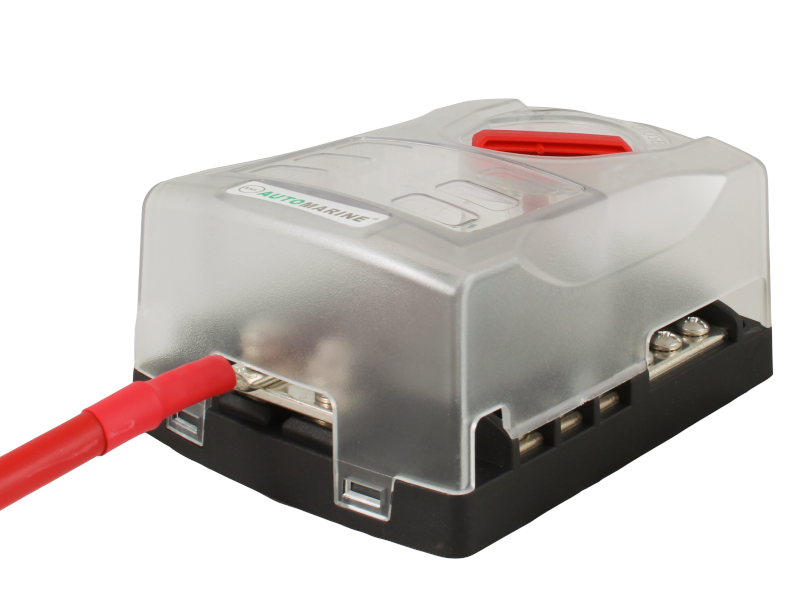

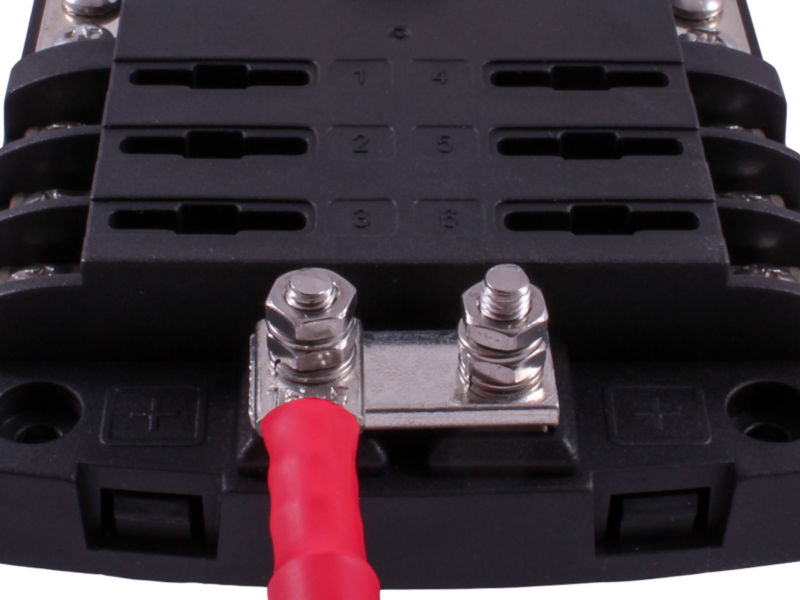

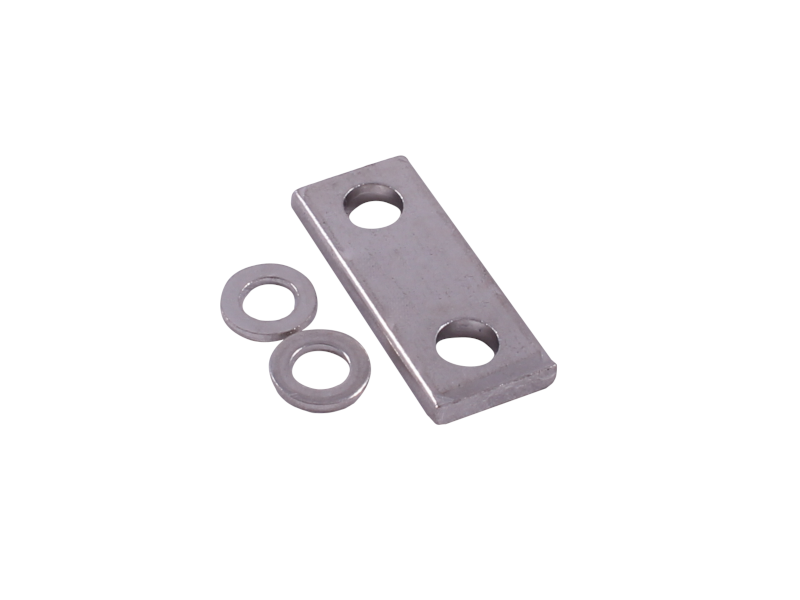

This jumper bar solves this problem by neatly joining the terminals together, enabling a single cable feed from your battery. The bar is 4mm thick, high purity copper with tin-plating for corrosion resistance, and is supplied with two tin-plated copper washers.

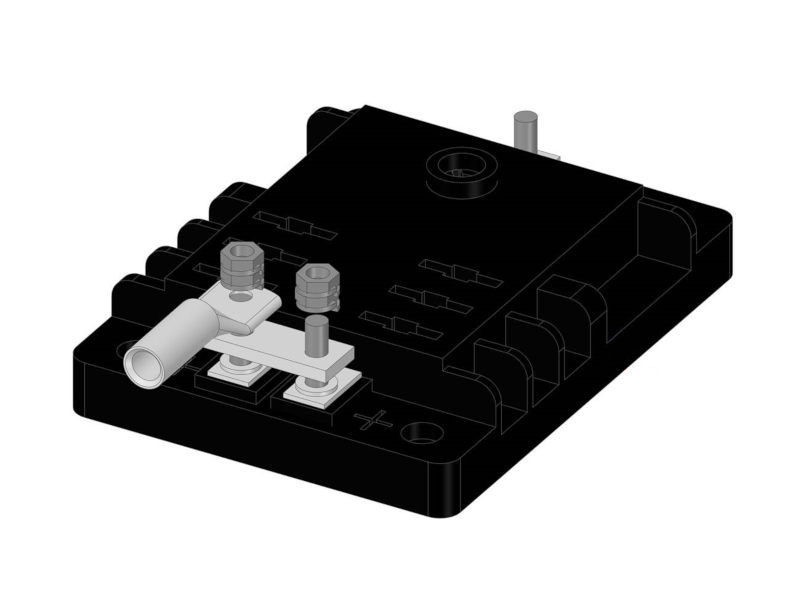

To ensure a good connection, the tinned copper washers must be fitted beneath the jumper bar.

• Material (bar and washers):  Tinned copper
• Bar dimensions: 30 (L) x 12 (W) x 4 (T) mm
• Washer thickness: 1mm
• Bar hole diameter: 5.5mm

Part Number:  TCDR1757REV002
