Mega Fuse Holder: From 40-500Amp Mega & ANL Fuses

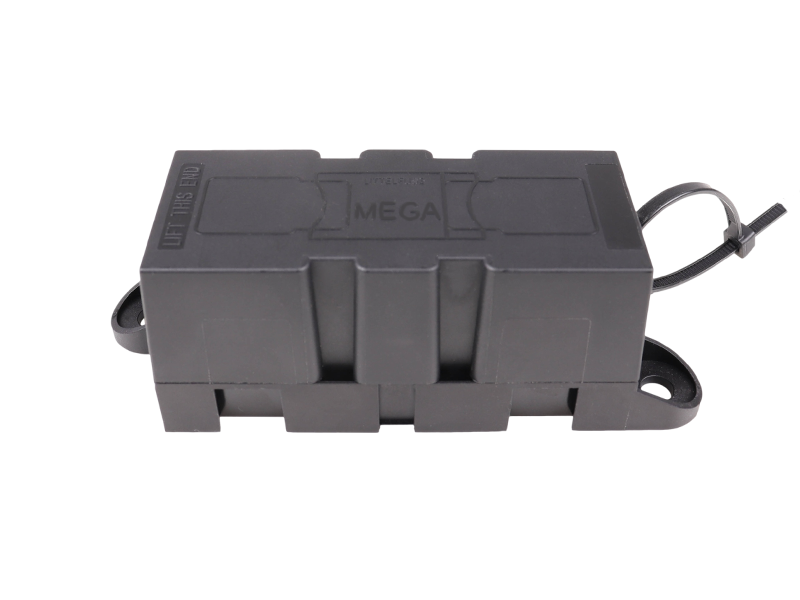

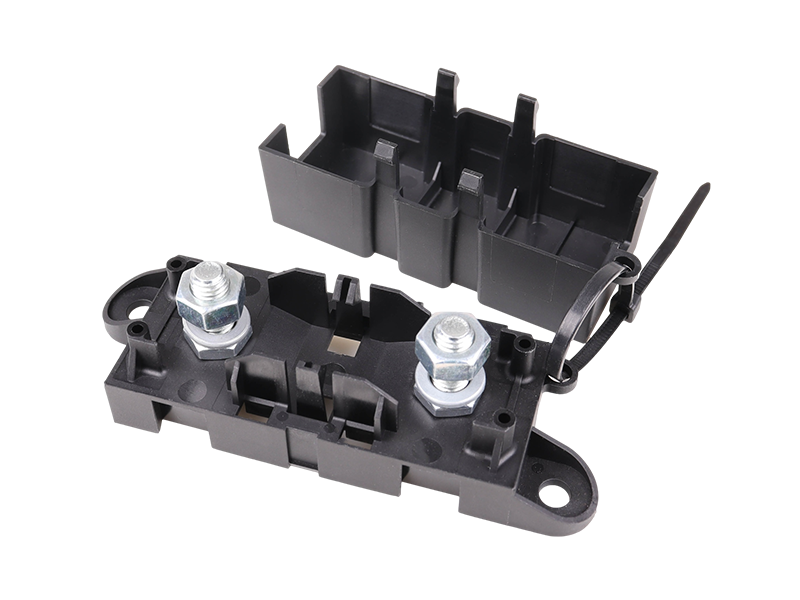

Black Stackable Mega Fuse holder:

Single fuse holder with protective cover for mega link fuses. The fuse and cable terminals are secured using 2 x M8 studs, hex nuts and lock washers (supplied) and the cables enter at the ends of the holder.

These fuse holders have side stacking features allowing them to be clipped together to form a multi-fuse block and there are two mounting lugs moulded into the housing for fixing to a flat surface.

Sold individually (fuses not included).

• Voltage rating: 32VDC max.
• Current rating: 500A max.
• Colour: Black
• Holder material: Nylon 6.6
• Cable entry: in-line
• Max. cable size: 70mm²
• Connection: 2 x M8 studs, nuts & lock washers
• Fixing hole dia: 6.0mm
• Overall dims: 119 (L) x 43 (W) x 39 (H) mm

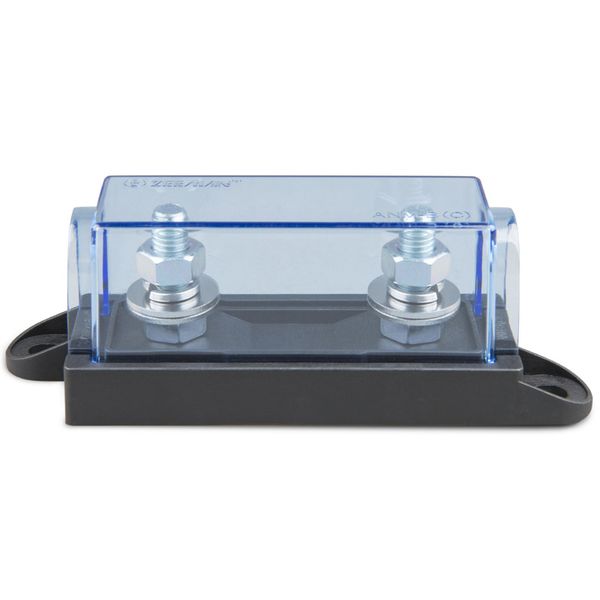

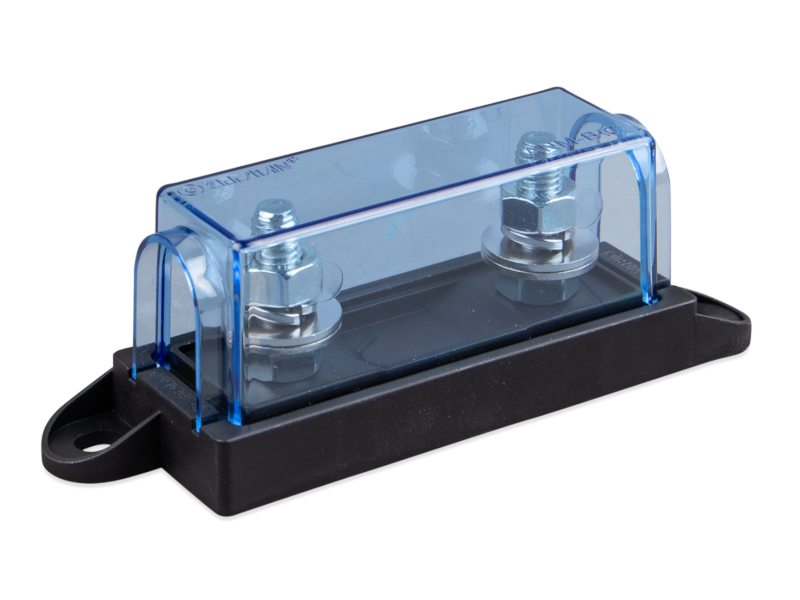

Victron Clear Mega Fuse Holder:

Single fuse holder for mega fuses from Victron Energy, with blue-tinted clear polycarbonate lid.

The fuse and cable terminals are secured using galvanised steel M8 studs, hex nuts and lock washers.

The black ABS base incorporates two mounting lugs for fixing to a flat surface (fixings not included).

Fuse not included.

• Voltage rating: 58V DC max.
• Current rating: 500A max.
• Terminal size: M8
• Max. cable size: 70mm²
• Fixing hole size: 6mm
• Overall dimensions: 127 (L) x 37 (W) x 44 (H) mm

Part Number:  CIP000100001

Bar Code:  8719076021704
