Standard Blade Fuse Box With Positive Busbar & LEDs - 10 Way

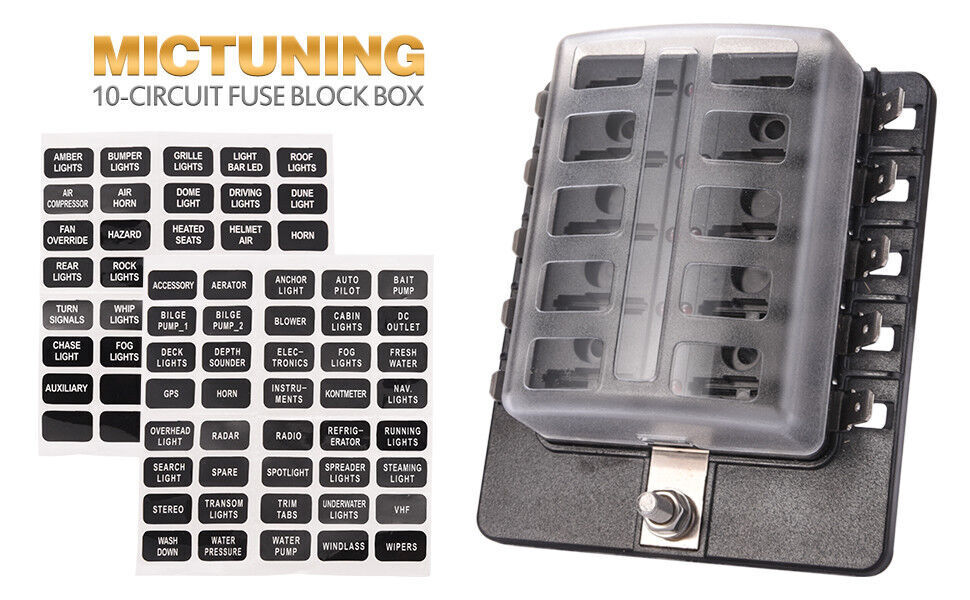

10-way standard blade fuse box with individual LEDs that light to indicate when a fuse has blown. Power input is via a common stud feeding each of the 10 circuits and the output connections are 6.3mm blade terminals on the sides of the unit. Supplied with a clear protective cover that clips into place and the base has 4 fixing holes for surface mounting.

Sold individually (fuses not included).

Further information

The nut on the stud is an imperial size (3/8" AF) and the stud accepts a 5.3mm dia ring terminal.

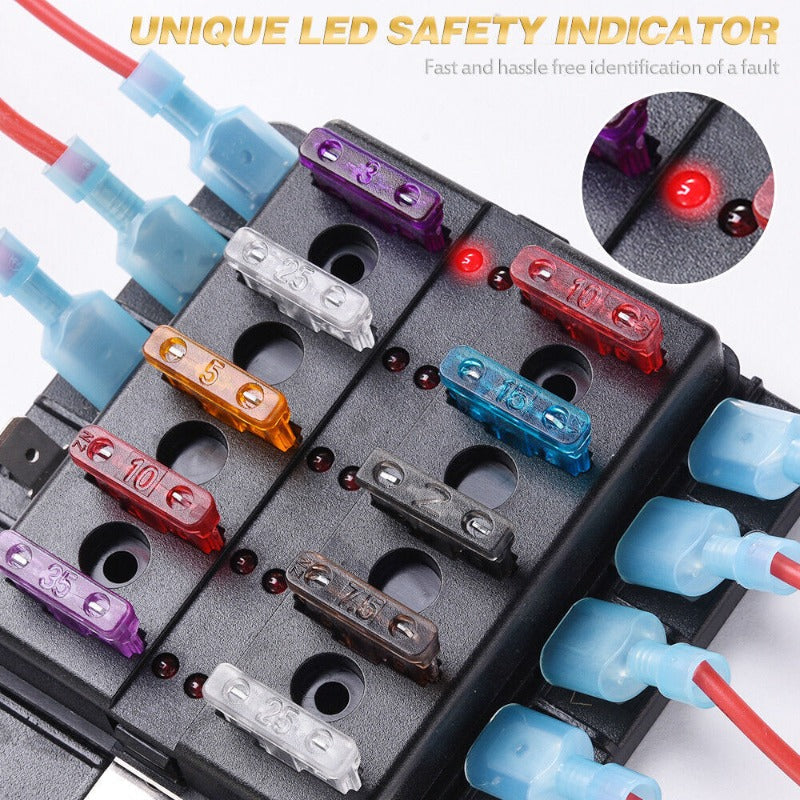

Please note that in order for the red LED to light, a very small, limited current passes through the circuit so you may still register continuity across the fusebox terminals when a fuse is blown or no fuse is in place. This limited current is completely safe but may cause connected LED lights to glow faintly (since they require such low current to operate).

• No. fuse slots: 10
• Voltage rating: 32V d.c max.
• Input terminal current rating: 100A max.
• Output terminal current rating: 30A max. per circuit
• Body colour: Black
• Cover colour: Clear
• Terminals: 1x 5mm stud & 10x 6.3mm male blade
• M5 stud length: 14mm
• Fixing hole dia: 5.2mm
• Fixing hole pitch: 48 x 28 mm
