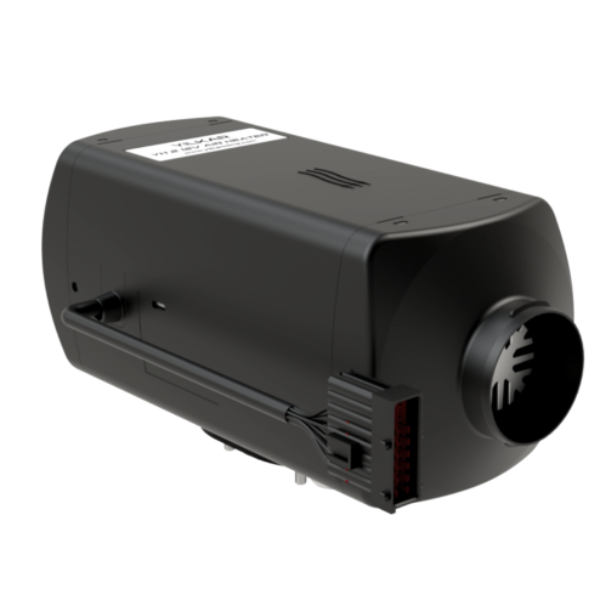

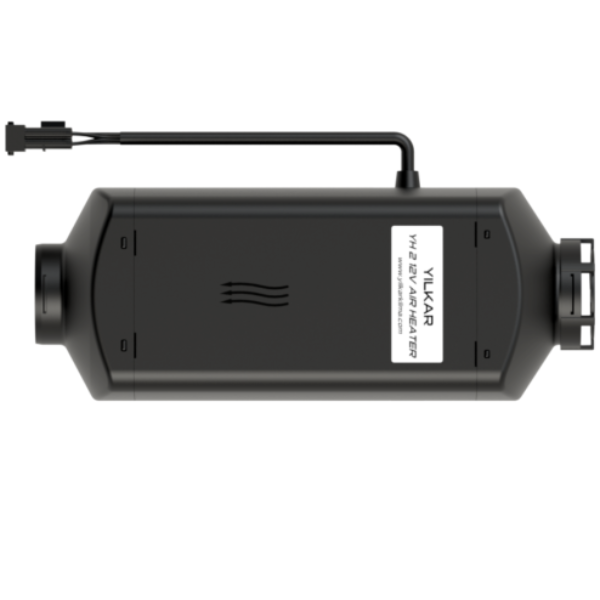

Yilkar Air Diesel Heater – YH2 Standard kit Full Kit

Air Heater is a heater device that operates independently of the engine, has low electrical consumption, and has the ability to quickly heat the desired place by using the heat energy generated by the fuel.
The air heater can be used anywhere that has a small energy source (battery) that can enable electrical components to work. Therefore, it has many uses. These; people transport, truck cabins, caravans, marine, ambulance, etc. special utility vehicles, defense industry, and various electric vehicles.

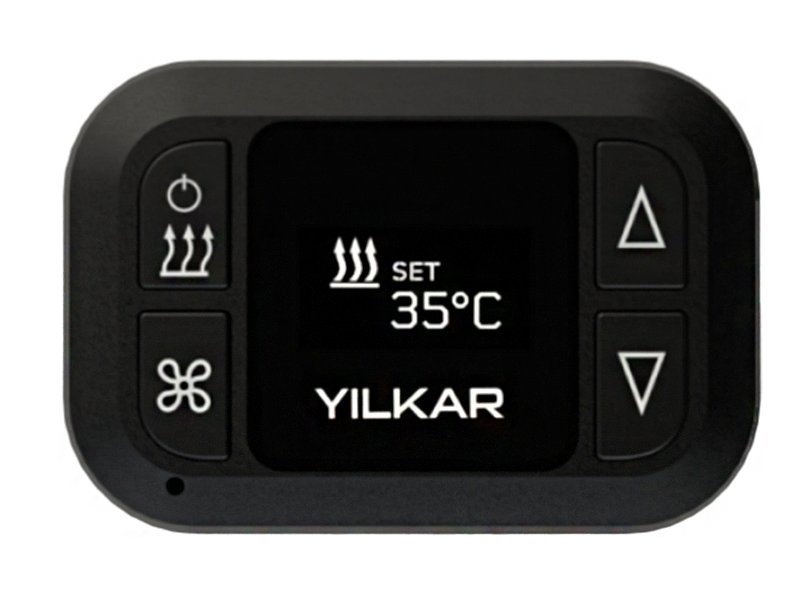

Standard Control Unit

0.97 inch Oled Large Graphic Display
4 Button Control
Ambient Temperature Sensor
Adjustable Temperature
Heating Mode
Ventilation Mode
Instant Temperature Display
Unit Support
Warning Display
Reset
Altitude limit 1500m

Features

• ECE R122 Number: 122 R - 0010869
• ECE R10 Number: 10R - 05 15114
• Heating Capacity: 0,9 - 2,5 kW
• Air Flow: 90 m³/h (max.)
• Fuel Type: Diesel
• Fuel Consumption: 0,28 lt/h (max.) - 0,2 lt/h (average)
• Operating Voltage: 12 / 24 VDC
• Starting Current: 8A @ 12VDC - 4A @ 24VDC
• Operating Current: (max.) 3A @ 12VDC - 1.5A @ 24VDC
• Weight: 3 kg

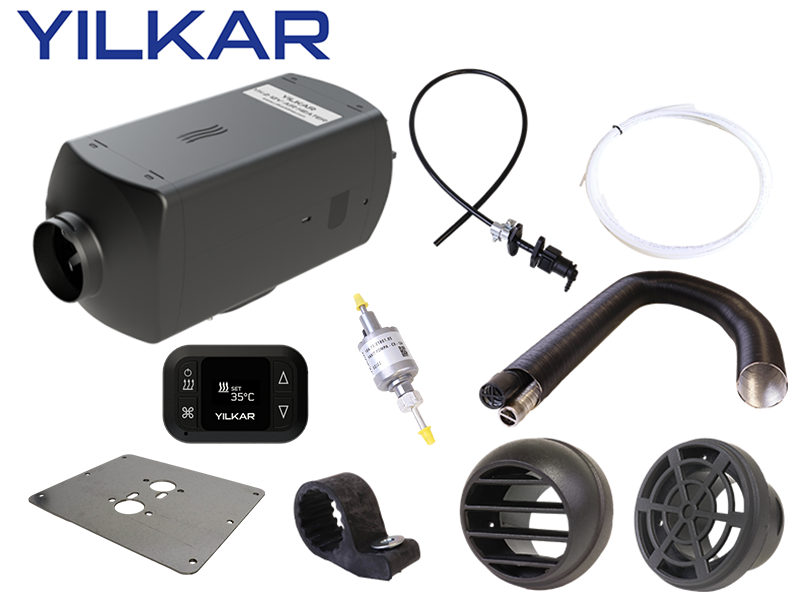

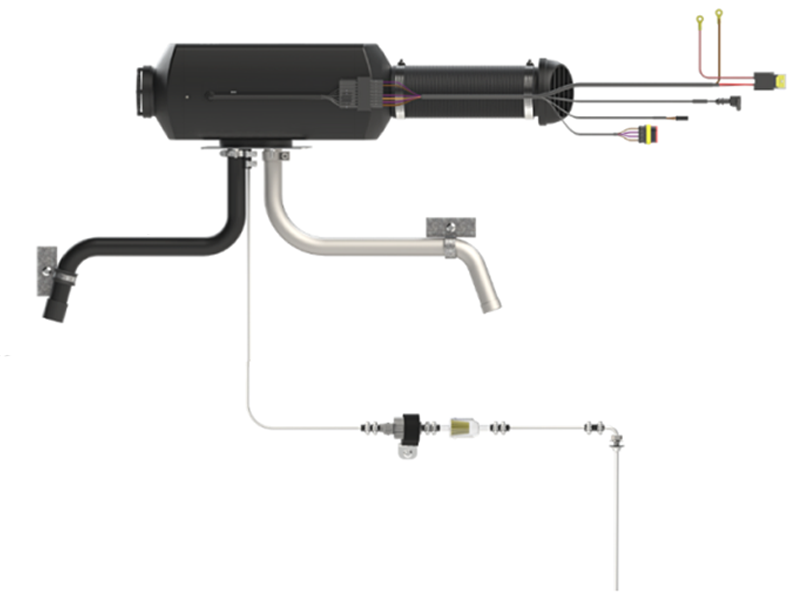

• All parts required for the installation are provided by Yılkar.
• 1. Air Heater
• 2. Air routing hose kit
• 3. Air inlet / outlet vent kit
• 4. Main wiring
• 5. Vibration-absorbing seal
• 6. Combustion and exhaust air clamp kit
• 7. Combustion air hose
• 8. Exhaust air hose
• 9. Polyamide fuel hose
• 10. Fuel metering pump
• 11. Vibration damper pump connection kit
• 12. Fuel filter kit
• 13. Fuel pull hose kit
• 14. YH Basic control unit
